AGL Instrument Cluster API Specifications

Rev1.0 Last Update: 2026/2/4

Purpose¶

This specification describes the interface for the Cluster UI in the HMI Layer to obtain signal information from the IC-Service.

Overview¶

This defines the API between the Cluster UI in the HMI Layer, which performs screen rendering, and the IC-Service in the Service Layer, which performs functional processing.

The Cluster UI in the HMI Layer and the IC-Service in the Service Layer are isolated process boundaries. That is communicated using an inter-process communication method. It's realized for the pseudo shared memory.

There are two usage models for the pseudo shared memory: Polling and Event.

• Polling

The IC-Service updates values in the pseudo shared memory when the value is changed. The Cluster UI periodically calls 'get' functions to retrieve values from the pseudo shared memory regardless of whether values have changed.

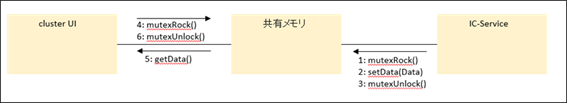

This diagram provides an overview of polling mode.

• Event

The Cluster UI registers signals using the notification API if it needs to receive notifications of signal value changes from the IC-Service. When the IC-Service updates the pseudo shared memory values, it accesses the value change. If the registered signal value has changed, it notifies the Cluster UI via the Notify function.

The Cluster UI gets the new signal value from the Notify function.

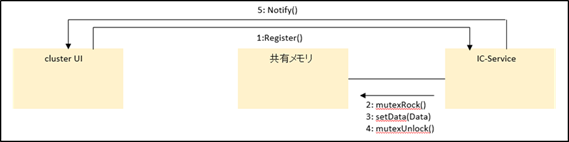

This diagram provides an overview of event mode.

API Details¶

This section describes the details of the API. It defines using the C language ABI. These API uses to obtain each signal.

Signal retrieval API details include six items:

• Prototype declaration
• API description
• Return type
• Return value details
• Argument details
• Notes

The details for Enum and Macro constant definitions are as follows.

Enum constant definitions include:

• API name
• API description
• Constant names, values and descriptions
• Notes

Macro constant definitions include:

• API name
• API description
• Value and description
• Notes

Enum Definition¶

IC_HMI_ON_OFF¶

Enum Name¶

IC_HMI_ON_OFF

Description¶

Telltale ON/OFF state

Constants and values¶

0: IC_HMI_OFF

OFF state

1: IC_HMI_ON

ON state

Notes¶

None

IC_HMI_GEAR_AT_VAL¶

Enum Name¶

IC_HMI_GEAR_AT_VAL

Description¶

Gear state (AT)

Constants and values¶

0: IC_HMI_AT_OFF

Gear not displayed

1: IC_HMI_AT_PARKING

Gear is in Parking

2: IC_HMI_AT_REVERSE

Gear is in Reverse

3: IC_HMI_AT_NEUTRAL

Gear is in Neutral

4: IC_HMI_AT_DRIVE

Gear is in Drive

5: IC_HMI_AT_SECOND

Gear is in Second

6: IC_HMI_AT_LOW_GEAR

Gear is in Low Gear

7: IC_HMI_AT_FIRST

Gear is in First

8: IC_HMI_AT_MANUAL

Gear is in Manual

9: IC_HMI_AT_BRAKE

Gear is in Brake

10: IC_HMI_AT_ALL_ON

All indicators ON

11: IC_HMI_AT_ALL_OFF

All indicators OFF

12: IC_HMI_AT_UNUSED

Gear unused

Notes¶

None

IC_HMI_GEAR_MT_VAL¶

Enum Name¶

IC_HMI_GEAR_MT_VAL

Description¶

Gear state (MT)

Constants and values¶

0: IC_HMI_MT_OFF

Gear not displayed

1: IC_HMI_MT_FIRST

1st gear

2: IC_HMI_MT_SECOND

2nd gear

3: IC_HMI_MT_THIRD

3rd gear

4: IC_HMI_MT_FOURTH

4th gear

5: IC_HMI_MT_FIFTH

5th gear

6: IC_HMI_MT_SIXTH

6th gear

7: IC_HMI_MT_SEVENTH

7th gear

8: IC_HMI_MT_EIGHTTH

8th gear

Notes¶

None

IC_HMI_SP_UNIT_VAL¶

Enum Name¶

IC_HMI_SP_UNIT_VAL

Description¶

Speed unit

Constants and values¶

0: IC_HMI_SP_KM_H

Speed unit is km/h

1: IC_HMI_SP_MPH

Speed unit is mph

Notes¶

None

IC_HMI_TRCOM_UNIT_VAL¶

Enum Name¶

IC_HMI_TRCOM_UNIT_VAL

Description¶

Trip computer unit

0: IC_HMI_TRCOM_KM

Trip computer unit is km

1: IC_HMI_TRCOM_MILE

Trip computer unit is mile

Notes¶

None

IC_HMI_FUEL_ECONOMY_UNIT_VAL¶

Enum Name¶

IC_HMI_FUEL_ECONOMY_UNIT_VAL

Description¶

Fuel economy display units * Instant fuel economy * Average fuel economy A/B * Instant electric consumption * Instant electric consumption A/B

Constants and values¶

0: IC_HMI_FUEL_KM_L

Fuel economy unit km/L

1: IC_HMI_FUEL_MPG_US

Fuel economy unit MPG (U.S. gallon)

2: IC_HMI_FUEL_MPG_IG

Fuel economy unit MPG (imperial gallon)

3: IC_HMI_FUEL_L_100KM

Fuel economy unit L/100km

4: IC_HMI_FUEL_MILE_KWH

Fuel economy unit mile/kWh

5: IC_HMI_FUEL_KM_KWH

Fuel economy unit km/kWh

6: IC_HMI_FUEL_MILE_KG

Fuel economy unit mile/kg

7: IC_HMI_FUEL_KM_KG

Fuel economy unit km/kg

8: IC_HMI_FUEL_KWH_100KM

Fuel economy unit kWh/100km

Notes¶

None

IC_HMI_OTEMP_UNIT_VAL¶

Enum Name¶

IC_HMI_OTEMP_UNIT_VAL

Description¶

Outside temperature unit

Constants and values¶

0: IC_HMI_OTEMP_UNIT_C

Outside temperature unit Celsius

1: IC_HMI_OTEMP_UNIT_K

Outside temperature unit Fahrenheit

Notes¶

None

Macro Definition¶

TellTale¶

IC_HMI_TT_TURN_R¶

Macro Name¶

IC_HMI_TT_TURN_R

Description¶

Bit flag for right turn signal state

Value¶

0x0000000000000001

Notes¶

None

IC_HMI_TT_TURN_L¶

Macro Name¶

IC_HMI_TT_TURN_L

Description¶

Bit flag for left turn signal state

Value¶

0x0000000000000002

Notes¶

None

IC_HMI_TT_BRAKE¶

Macro Name¶

IC_HMI_TT_BRAKE

Description¶

Bit flag for brake warning light state

Value¶

0x0000000000000004

Notes¶

None

IC_HMI_TT_SEATBELT¶

Macro Name¶

IC_HMI_TT_SEATBELT

Description¶

Bit flag for seatbelt warning light state

Value¶

0x0000000000000008

Notes¶

None

IC_HMI_TT_HIGHBEAM¶

Macro Name¶

IC_HMI_TT_HIGHBEAM

Description¶

Bit flag for beam passing indicator state

Value¶

0x0000000000000010

Notes¶

None

IC_HMI_TT_DOOR¶

Macro Name¶

IC_HMI_TT_DOOR

Description¶

Bit flag for half-door warning light state

Value¶

0x0000000000000020

Notes¶

None

IC_HMI_TT_EPS¶

Macro Name¶

IC_HMI_TT_EPS

Description¶

Bit flag for EPS warning light state

Value¶

0x0000000000000040

Notes¶

None

IC_HMI_TT_SRS_AIRBAG¶

Macro Name¶

IC_HMI_SRS_TT_AIRBAG

Description¶

Bit flag for SRS airbag warning light state

Value¶

0x0000000000000080

Notes¶

None

IC_HMI_TT_ABS¶

Macro Name¶

IC_HMI_TT_ABS

Description¶

Bit flag for ABS warning light state

Value¶

0x0000000000000100

Notes¶

None

IC_HMI_TT_LOW_BATTERY¶

Macro Name¶

IC_HMI_TT_LOW_BATTERY

Description¶

Bit flag for charge warning light state

Value¶

0x0000000000000200

Notes¶

None

IC_HMI_TT_OIL_PRESS¶

Macro Name¶

IC_HMI_TT_OIL_PRESS

Description¶

Bit flag for oil pressure warning light state

Value¶

0x0000000000000400

Notes¶

None

IC_HMI_TT_ENGINE¶

Macro Name¶

IC_HMI_TT_ENGINE

Description¶

Bit flag for engine warning light state

Value¶

0x0000000000000800

Notes¶

None

IC_HMI_TT_FUEL¶

Macro Name¶

IC_HMI_TT_FUEL

Description¶

Bit flag for low fuel warning light state

Value¶

0x0000000000001000

Notes¶

None

IC_HMI_TT_IMMOBI¶

Macro Name¶

IC_HMI_TT_IMMOBI

Description¶

Bit flag for immobilizer warning light state

Value¶

0x0000000000002000

Notes¶

None

IC_HMI_TT_TM_FAIL¶

Macro Name¶

IC_HMI_TT_TM_FAIL

Description¶

Bit flag for TM Failure warning light state

Value¶

0x0000000000004000

Notes¶

None

IC_HMI_TT_ESP_ACT¶

Macro Name¶

IC_HMI_TT_ESP_ACT

Description¶

Bit flag for ESP-ACT warning light state

Value¶

0x0000000000008000

Notes¶

None

IC_HMI_TT_ESP_OFF¶

Macro Name¶

IC_HMI_TT_ESP_OFF

Description¶

Bit flag for ESP-OFF warning light state

Value¶

0x0000000000010000

Notes¶

None

IC_HMI_TT_ADAPTING_LIGHTING¶

Macro Name¶

IC_HMI_TT_ADAPTING_LIGHTING

Description¶

Bit flag for Adapting Lighting warning light state

Value¶

0x0000000000020000

Notes¶

None

IC_HMI_TT_AUTO_STOP¶

Macro Name¶

IC_HMI_TT_AUTO_STOP

Description¶

Bit flag for Auto Stop warning light state

Value¶

0x0000000000040000

Notes¶

None

IC_HMI_TT_AUTO_STOP_FAIL¶

Macro Name¶

IC_HMI_TT_AUTO_STOP_FAIL

Description¶

Bit flag for Auto Stop Fail warning light state

Value¶

0x0000000000080000

Notes¶

None

IC_HMI_TT_PARKING_LIGHTS¶

Macro Name¶

IC_HMI_TT_PARKING_LIGHTS

Description¶

Bit flag for Parking Lights warning light state

Value¶

0x0000000000100000

Notes¶

None

IC_HMI_TT_FRONT_FOG¶

Macro Name¶

IC_HMI_TT_FRONT_FOG

Description¶

Bit flag for Front Fog warning light state

Value¶

0x0000000000200000

Notes¶

None

IC_HMI_TT_EXTERIOR_LIGHT_FAULT¶

Macro Name¶

IC_HMI_TT_EXTERIOR_LIGHT_FAULT

Description¶

Bit flag for Exterior Light Fault warning light state

Value¶

0x0000000000400000

Notes¶

None

IC_HMI_TT_ACC_FAIL¶

Macro Name¶

IC_HMI_TT_ACC_FAIL

Description¶

Bit flag for ACC-Failure warning light state

Value¶

0x0000000000800000

Notes¶

None

IC_HMI_TT_LDW_OFF¶

Macro Name¶

IC_HMI_TT_LDW_OFF

Description¶

Bit flag for Lane Departure Warning OFF state

Value¶

0x0000000001000000

Notes¶

None

IC_HMI_TT_HILL_DESCENT¶

Macro Name¶

IC_HMI_TT_HILL_DESCENT

Description¶

Bit flag for Hill-Descent warning light state

Value¶

0x0000000002000000

Notes¶

None

IC_HMI_TT_AUTO_HI_BEAM_GREEN¶

Macro Name¶

IC_HMI_TT_AUTO_HI_BEAM_GREEN

Description¶

Bit flag for AutoHiBeamGreen warning light state

Value¶

0x0000000004000000

Notes¶

None

IC_HMI_TT_AUTO_HI_BEAM_AMBER¶

Macro Name¶

IC_HMI_TT_AUTO_HI_BEAM_AMBER

Description¶

Bit flag for AutoHiBeamAmber warning light state

Value¶

0x0000000008000000

Notes¶

None

IC_HMI_TT_LDW_OPERATE¶

Macro Name¶

IC_HMI_TT_LDW_OPERATE

Description¶

Bit flag for Lane Departure Warning Operate state

Value¶

0x0000000010000000

Notes¶

None

IC_HMI_TT_GENERAL_WARN¶

Macro Name¶

IC_HMI_TT_GENERAL_WARN

Description¶

Bit flag for General Warn state

Value¶

0x0000000020000000

Notes¶

None

IC_HMI_TT_SPORTS_MODE¶

Macro Name¶

IC_HMI_TT_SPORTS_MODE

Description¶

Bit flag for Sports Mode state

Value¶

0x0000000040000000

Notes¶

None

IC_HMI_TT_DRIVING_POWER_MODE¶

Macro Name¶

IC_HMI_TT_DRIVING_POWER_MODE

Description¶

Bit flag for Driving Power Mode state

Value¶

0x0000000080000000

Notes¶

None

IC_HMI_TT_HOT_TEMP¶

Macro Name¶

IC_HMI_TT_HOT_TEMP

Description¶

Bit flag for Hot Temp state

Value¶

0x0000000100000000

Notes¶

None

IC_HMI_TT_LOW_TEMP¶

Macro Name¶

IC_HMI_TT_LOW_TEMP

Description¶

Bit flag for Low Temp state

Value¶

0x0000000200000000

Notes¶

None

IC_HMI_TT_ALL¶

Macro Name¶

IC_HMI_TT_ALL

Description¶

Bit flag to set all warning lights ON

Value¶

0xFFFFFFFFFFFFFFFF

Notes¶

None

Callback Function¶

IC_HMI_FUNC_NOTIFY_IC_HMI¶

Function prototype¶

typedef void(* IC_HMI_FUNC_NOTIFY_IC_HMI)(unsigned long long arg_1, IC_HMI_ON_OFF arg_2)

Description¶

Callback function type passed as an argument to registerIcHmi used in Event mode.

Return type¶

void

Return details¶

None

Argument details¶

unsigned long long arg_1

Bit flags corresponding to signals to be retrieved. See the Telltale section for mapping of bits to signals.

IC_HMI_ON_OFF arg_2

Signal state after change detection. See Enum Definition for state meanings.

Notes¶

None

Telltale¶

getTurnR¶

Prototype¶

IC_HMI_ON_OFF getTurnR(void)

Description¶

Gets the right turn signal state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

Blink control is handled by IC-Service.

getTurnL¶

Prototype¶

IC_HMI_ON_OFF getTurnL(void)

Description¶

Gets the left turn signal state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

Blink control is handled by IC-Service.

getBrake¶

Prototype¶

IC_HMI_ON_OFF getBrake(void)

Description¶

Gets the brake warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getSeatbelt(void)

Description¶

Gets the seatbelt warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

Returns ON if any of getFrontRightSeatbelt through getRearLeftSeatbelt is OFF.

getFrontRightSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getFrontRightSeatbelt(void)

Description¶

Gets the front-right seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

None

getFrontCenterSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getFrontCenterSeatbelt(void)

Description¶

Gets the front-center seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

None

getFrontLeftSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getFrontLeftSeatbelt(void)

Description¶

Gets the front-left seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

None

getMid1RightSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getMid1RightSeatbelt(void)

Description¶

Gets the second-row right seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

Returns seatbelt information for the second row in vehicles with three or more rows. Not used for vehicles with less than three rows.

getMid1CenterSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getMid1CenterSeatbelt(void)

Description¶

Gets the second-row center seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

Returns seatbelt information for the second row in vehicles with three or more rows. Not used for vehicles with less than three rows.

getMid1LeftSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getMid1LeftSeatbelt(void)

Description¶

Gets the second-row left seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

Returns seatbelt information for the second row in vehicles with three or more rows. Not used for vehicles with less than three rows.

getMid2RightSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getMid2RightSeatbelt(void)

Description¶

Gets the third-row right seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

Returns seatbelt information for the third row in vehicles with four or more rows. Not used for vehicles with less than four rows.

getMid2CenterSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getMid2CenterSeatbelt(void)

Description¶

Gets the third-row center seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

Returns seatbelt information for the third row in vehicles with four or more rows. Not used for vehicles with less than four rows.

getMid2LeftSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getMid2LeftSeatbelt(void)

Description¶

Gets the third-row left seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

Returns seatbelt information for the third row in vehicles with four or more rows. Not used for vehicles with less than four rows.

getRearRightSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getRearRightSeatbelt(void)

Description¶

Gets the rear-right seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

None

getRearCenterSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getRearCenterSeatbelt(void)

Description¶

Gets the rear-center seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

None

getRearLeftSeatbelt¶

Prototype¶

IC_HMI_ON_OFF getRearLeftSeatbelt(void)

Description¶

Gets the rear-left seatbelt state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Not fastened

IC_HMI_ON

Fastened

Arguments¶

None

Notes¶

None

getHighbeam¶

Prototype¶

IC_HMI_ON_OFF getHighbeam(void)

Description¶

Gets the beam passing indicator state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getDoor¶

Prototype¶

IC_HMI_ON_OFF getDoor(void)

Description¶

Gets the half-door warning state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

Returns ON if any of getFrontRightDoor through getHoodDoor is ON.

getFrontRightDoor¶

Prototype¶

IC_HMI_ON_OFF getFrontRightDoor(void)

Description¶

Gets the front-right door open/close state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Closed

IC_HMI_ON

Open

Arguments¶

None

Notes¶

None

getFrontLeftDoor¶

Prototype¶

IC_HMI_ON_OFF getFrontLeftDoor(void)

Description¶

Gets the front-left door open/close state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Closed

IC_HMI_ON

Open

Arguments¶

None

Notes¶

None

getRearRightDoor¶

Prototype¶

IC_HMI_ON_OFF getRearRightDoor(void)

Description¶

Gets the rear-right door open/close state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Closed

IC_HMI_ON

Open

Arguments¶

None

Notes¶

None

getRearLeftDoor¶

Prototype¶

IC_HMI_ON_OFF getRearLeftDoor(void)

Description¶

Gets the rear-left door open/close state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Closed

IC_HMI_ON

Open

Arguments¶

None

Notes¶

None

getTrunkDoor¶

Prototype¶

IC_HMI_ON_OFF getTrunkDoor(void)

Description¶

Gets the trunk door open/close state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Closed

IC_HMI_ON

Open

Arguments¶

None

Notes¶

None

getHoodDoor¶

Prototype¶

IC_HMI_ON_OFF getHoodDoor(void)

Description¶

Gets the hood (bonnet) open/close state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Closed

IC_HMI_ON

Open

Arguments¶

None

Notes¶

None

getEps¶

Prototype¶

IC_HMI_ON_OFF getEps(void)

Description¶

Gets the EPS warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getSrsAirbag¶

Prototype¶

IC_HMI_ON_OFF getSrsAirbag(void)

Description¶

Gets the SRS airbag warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getAbs¶

Prototype¶

IC_HMI_ON_OFF getAbs(void)

Description¶

Gets the ABS warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getLowBattery¶

Prototype¶

IC_HMI_ON_OFF getLowBattery(void)

Description¶

Gets the charge warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getOilPress¶

Prototype¶

IC_HMI_ON_OFF getOilPress(void)

Description¶

Gets the oil pressure warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getEngine¶

Prototype¶

IC_HMI_ON_OFF getEngine(void)

Description¶

Gets the engine warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getFuel¶

Prototype¶

IC_HMI_ON_OFF getFuel(void)

Description¶

Gets the low fuel warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getImmobi¶

Prototype¶

IC_HMI_ON_OFF getImmobi(void)

Description¶

Gets the immobilizer warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getTMFail¶

Prototype¶

IC_HMI_ON_OFF getTMFail(void)

Description¶

Gets the TM Failure warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getEspAct¶

Prototype¶

IC_HMI_ON_OFF getEspAct(void)

Description¶

Gets the ESP-ACT warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getEspOff¶

Prototype¶

IC_HMI_ON_OFF getEspOff(void)

Description¶

Gets the ESP-OFF warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getAdaptingLighting¶

Prototype¶

IC_HMI_ON_OFF getAdaptingLighting(void)

Description¶

Gets the Adapting Lighting warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getAutoStop¶

Prototype¶

IC_HMI_ON_OFF getAutoStop(void)

Description¶

Gets the Auto Stop warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getAutoStopFail¶

Prototype¶

IC_HMI_ON_OFF getAutoStopFail(void)

Description¶

Gets the Auto Stop Fail warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getParkingLights¶

Prototype¶

IC_HMI_ON_OFF getParkingLights(void)

Description¶

Gets the Parking Lights warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getFrontFog¶

Prototype¶

IC_HMI_ON_OFF getFrontFog(void)

Description¶

Gets the Front Fog warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getExteriorLightFault¶

Prototype¶

IC_HMI_ON_OFF getExteriorLightFault(void)

Description¶

Gets the Exterior Light Fault warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getAccFail¶

Prototype¶

IC_HMI_ON_OFF getAccFail(void)

Description¶

Gets the ACC-Failure warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getLdwOff¶

Prototype¶

IC_HMI_ON_OFF getLdwOff(void)

Description¶

Gets the Lane Departure Warning OFF state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getHillDescent¶

Prototype¶

IC_HMI_ON_OFF getHillDescent(void)

Description¶

Gets the Hill-Descent warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getAutoHiBeamGreen¶

Prototype¶

IC_HMI_ON_OFF getAutoHiBeamGreen(void)

Description¶

Gets the AutoHiBeamGreen warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getAutoHiBeamAmber¶

Prototype¶

IC_HMI_ON_OFF getAutoHiBeamAmber(void)

Description¶

Gets the AutoHiBeamAmber warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getSportsMode¶

Prototype¶

IC_HMI_ON_OFF getSportsMode(void)

Description¶

Gets the Sports Mode warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getLdwOperate¶

Prototype¶

IC_HMI_ON_OFF getLdwOperate(void)

Description¶

Gets the Lane Departure Warning Operate state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getGeneralWarn¶

Prototype¶

IC_HMI_ON_OFF getGeneralWarn(void)

Description¶

Gets the General Warn state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getDrivingPowerMode¶

Prototype¶

IC_HMI_ON_OFF getDrivingPowerMode(void)

Description¶

Gets the Driving Power Mode state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getHotTemp¶

Prototype¶

IC_HMI_ON_OFF getHotTemp(void)

Description¶

Gets the Hot Temp warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

getLowTemp¶

Prototype¶

IC_HMI_ON_OFF getLowTemp(void)

Description¶

Gets the Low Temp warning light state.

Return type¶

IC_HMI_ON_OFF

Return details¶

IC_HMI_OFF

Off

IC_HMI_ON

On

Arguments¶

None

Notes¶

None

ShiftPosition¶

getGearAtVal¶

Prototype¶

IC_HMI_GEAR_AT_VAL getGearAtVal(void)

Description¶

Gets the gear state value.

Return type¶

IC_HMI_GEAR_AT_VAL

Return details¶

0: IC_HMI_AT_OFF

Indicates gear not displayed.

1: IC_HMI_AT_PARKING

Indicates Parking.

2: IC_HMI_AT_REVERSE

Indicates Reverse.

3: IC_HMI_AT_NEUTRAL

Indicates Neutral.

4: IC_HMI_AT_DRIVE

Indicates Drive.

5: IC_HMI_AT_SECOND

Indicates Second.

6: IC_HMI_AT_LOW_GEAR

Indicates Low Gear.

7: IC_HMI_AT_FIRST

Indicates First.

8: IC_HMI_AT_MANUAL

Indicates Manual.

9: IC_HMI_AT_BRAKE

Indicates Brake.

10: IC_HMI_AT_ALL_ON

Indicates fault: all ON.

11: IC_HMI_AT_ALL_OFF

Indicates fault: all OFF.

12: IC_HMI_AT_UNUSED

Indicates gear unused.

Arguments¶

None

Notes¶

None

getGearMtVal¶

Prototype¶

IC_HMI_GEAR_MT_VAL getGearMtVal(void)

Description¶

Gets the gear state value.

Return type¶

IC_HMI_GEAR_MT_VAL

Return details¶

0: IC_HMI_MT_OFF

Indicates gear not displayed.

1: IC_HMI_MT_FIRST

Indicates 1st gear.

2: IC_HMI_MT_SECOND

Indicates 2nd gear.

3: IC_HMI_MT_THIRD

Indicates 3rd gear.

4: IC_HMI_MT_FOURTH

Indicates 4th gear.

5: IC_HMI_MT_FIFTH

Indicates 5th gear.

6: IC_HMI_MT_SIXTH

Indicates 6th gear.

7: IC_HMI_MT_SEVENTH

Indicates 7th gear.

8: IC_HMI_MT_EIGHTH

Indicates 8th gear.

Arguments¶

None

Notes¶

None

Speed¶

getSpAnalogVal¶

Prototype¶

unsigned long getSpAnalogVal(void)

Description¶

Gets the speed analog value (resolution: 0.01 after smoothing).

Return type¶

unsigned long

Return details¶

Arguments¶

None

Notes¶

Unit depends on destination market.

getSpAnaDigUnitVal¶

Prototype¶

IC_HMI_SP_UNIT_VAL getSpAnaDigUnitVal(void)

Description¶

Gets the speed unit.

Return type¶

IC_HMI_SP_UNIT_VAL

Return details¶

0: IC_HMI_SP_KM_H

Display speed in km/h.

1: IC_HMI_SP_MPH

Display speed in mph.

Arguments¶

None

Notes¶

None

Tacho¶

getTaAnalogVal¶

Prototype¶

unsigned long getTaAnalogVal(void)

Description¶

Gets the tacho analog value (resolution: 1 after smoothing). Unit: rpm.

Return type¶

unsigned long

Return details¶

Arguments¶

None

Notes¶

None

TripComputer¶

getTrcomTripAVal¶

Prototype¶

unsigned long getTrcomTripAVal(void)

Description¶

Gets Trip A value (resolution: 0.1).

Return type¶

unsigned long

Return details¶

Arguments¶

None

Notes¶

Number of display digits depends on model.

getTrcomTripBVal¶

Prototype¶

unsigned long getTrcomTripBVal(void)

Description¶

Gets Trip B value (resolution: 0.1).

Return type¶

unsigned long

Return details¶

Arguments¶

None

Notes¶

Number of display digits depends on model.

getTrcomOdoVal¶

Prototype¶

unsigned long getTrcomOdoVal(void)

Description¶

Gets ODO value (resolution: 1).

Return type¶

unsigned long

Return details¶

Arguments¶

None

Notes¶

Number of display digits depends on model.

getTrcomUnitVal¶

Prototype¶

IC_HMI_TRCOM_UNIT_VAL getTrcomUnitVal(void)

Description¶

Gets the trip computer unit.

Return type¶

IC_HMI_TRCOM_UNIT_VAL

Return details¶

IC_HMI_TRCOM_KM

Display trip computer unit in km.

IC_HMI_TRCOM_MILE

Display trip computer unit in mile.

Arguments¶

Used to get units for Trip A/B and ODO values.

getAvgSpeedAVal¶

Prototype¶

unsigned short getAvgSpeedAVal(void)

Description¶

Gets average speed value associated with Trip A (resolution: 1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getAvgSpeedBVal¶

Prototype¶

unsigned short getAvgSpeedBVal(void)

Description¶

Gets average speed value associated with Trip B (resolution: 1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getHourAVal¶

Prototype¶

unsigned short getHourAVal(void)

Description¶

Gets elapsed hours associated with Trip A (resolution: 1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getHourBVal¶

Prototype¶

unsigned short getHourBVal(void)

Description¶

Gets elapsed hours associated with Trip B (resolution: 1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getMinuteAVal¶

Prototype¶

unsigned char getMinuteAVal(void)

Description¶

Gets elapsed minutes associated with Trip A (resolution: 1).

Return type¶

unsigned char

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getMinuteBVal¶

Prototype¶

unsigned char getMinuteBVal(void)

Description¶

Gets elapsed minutes associated with Trip B (resolution: 1).

Return type¶

unsigned char

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getSecondAVal¶

Prototype¶

unsigned char getSecondAVal(void)

Description¶

Gets elapsed seconds associated with Trip A (resolution: 1).

Return type¶

unsigned char

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getSecondBVal¶

Prototype¶

unsigned char getSecondBVal(void)

Description¶

Gets elapsed seconds associated with Trip B (resolution: 1).

Return type¶

unsigned char

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getOTempVal¶

Prototype¶

signed short getOTempVal(void)

Description¶

Gets the outside temperature display value (resolution: 1).

Return type¶

signed short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getOTempUnitVal¶

Prototype¶

IC_HMI_OTEMP_UNIT_VAL getOTempUnitVal(void)

Description¶

Gets the unit used for the outside temperature display.

Return type¶

IC_HMI_OTEMP_UNIT_VAL

Return details¶

IC_HMI_OTEMP_UNIT_C

Display outside temperature in Celsius.

IC_HMI_OTEMP_UNIT_K

Display outside temperature in Fahrenheit.

Arguments¶

None

Notes¶

None

getCruRangeVal¶

Prototype¶

unsigned short getCruRangeVal(void)

Description¶

Gets the cruise range display value (resolution: 1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getAvgFuelAVal¶

Prototype¶

unsigned short getAvgFuelAVal(void)

Description¶

Gets average fuel consumption associated with Trip A (resolution: 0.1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getAvgFuelBVal¶

Prototype¶

unsigned short getAvgFuelBVal(void)

Description¶

Gets average fuel consumption associated with Trip B (resolution: 0.1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getInsFuelAVal¶

Prototype¶

unsigned short getInsFuelAVal(void)

Description¶

Gets instantaneous fuel consumption associated with Trip A (resolution: 0.1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getInsFuelBVal¶

Prototype¶

unsigned short getInsFuelBVal(void)

Description¶

Gets instantaneous fuel consumption associated with Trip B (resolution: 0.1).

Return type¶

unsigned short

Return details¶

Arguments¶

None

Notes¶

Display range depends on model.

getFuelEconomyUnitVal¶

Prototype¶

IC_HMI_FUEL_ECONOMY_UNIT_VAL getFuelEconomyUnitVal(void)

Description¶

Gets the fuel economy display unit.

Return type¶

IC_HMI_FUEL_ECONOMY_UNIT_VAL

Return details¶

IC_HMI_FUEL_KM_L

Display fuel economy in km/L.

IC_HMI_FUEL_MPG_US

Display fuel economy in MPG (U.S. gallon).

IC_HMI_FUEL_MPG_IG

Display fuel economy in MPG (imperial gallon).

IC_HMI_FUEL_L_100KM

Display fuel economy in L/100km.

IC_HMI_FUEL_MILE_KWH

Display fuel economy in mile/kWh.

IC_HMI_FUEL_KM_KWH

Display fuel economy in km/kWh.

IC_HMI_FUEL_MILE_KG

Display fuel economy in mile/kg.

IC_HMI_FUEL_KM_KG

Display fuel economy in km/kg.

IC_HMI_FUEL_KWH_100KM

Display fuel economy in kWh/100km.

Arguments¶

Used to retrieve units for average and instantaneous fuel consumption.

Notes¶

None

Register/Notify¶

registerIcHmi¶

Prototype¶

bool registerIcHmi(unsigned long long arg_1, IC_HMI_FUNC_NOTIFY_IC_HMI addr)

Description¶

Used by the Cluster UI in Event mode to specify which signals it wants to receive. See Chapter 2 for communication modes. Specify mask bits in the first argument to select the signals to receive. The second argument is the address of the application-created callback function.

Return type¶

bool

Return details¶

true

Registration succeeded

false

Registration failed

Arguments¶

unsigned long long arg_1: Bit flags for signals to retrieve. See the Telltale section for mapping of bits to signals. Unused flags are ignored.

IC_HMI_FUNC_NOTIFY_IC_HMI addr: Address of the defined callback function. See the Callback Function section for details.

If addr is set to null, registration fails.

Notes¶

Example implementation registering TurnR and TurnL signals:

registerIcHmi((IC_HMI_TT_TURN_R||IC_HMI_TT_TURN_L ), IC_HMI_FUNC_NOTIFY_IC_HMI addr)

The callback specified by addr is called when the corresponding signal changes.

notifyIcHmi¶

Prototype¶

void notifyIcHmi(unsigned long long arg_1, IC_HMI_ON_OFF arg_2)

Description¶

Called by the IC-Service to notify the Cluster UI that a registered signal has changed. This function is invoked at the time of change detection. The first argument is the bit flag indicating which signal changed, and the second argument is the post-change value.

Return type¶

void

Return details¶

None

Arguments¶

unsigned long long arg_1: Bit flags corresponding to the signal(s). See the bit flag section for each signal.

IC_HMI_ON_OFF arg_2: Signal state after change detection. See Enum Definition for details.

Notes¶

When a registered signal changes, the callback specified in registerIcHmi is invoked.

void notifyIcHmi(unsigned long long arg_1, IC_HMI_ON_OFF arg_2) {
    if(arg_1 == TRUN_R){
        // Processing when TurnR changes
        if(arg_2 == IC_HMI_ON){
            // ON processing
        } else {
            // OFF processing
        }
    }
}

Initialize¶

clusterInit¶

Prototype¶

bool clusterInit(void)

Description¶

Initializes the Cluster API for using the IC-Service.

Return type¶

bool

Return details¶

true

Initialization succeeded

false

Initialization failed

Arguments¶

None

Notes¶

Behavior is undefined if other APIs are called without calling this API first. Calling this API twice in a row without clusterTerm() will cause an error. If the IC-Service is not running, initialization will fail.

clusterTerm¶

Prototype¶

bool clusterTerm(void)

Description¶

Terminates the Cluster API and releases resources used by the Cluster API.

Return type¶

bool

Return details¶

true

Termination succeeded

false

Termination failed

Arguments¶

None

Notes¶

Calling this API without first calling clusterInit() results in an error. Calling this API twice in a row will cause an error.
